A dam break incident refers to the sudden, rapid, and uncontrolled release of impounded water due to the structural failure or collapse of a dam. These catastrophic events can lead to a rapidly propagating flood wave downstream, causing widespread destruction and significant loss of life. Dam failures are comparatively rare, but when they occur, their impact can be immense. The resulting "dam break wave" is characterized by extreme velocity, depth, and destructive power, often far exceeding natural flood events. Between 2000 and 2009, over 200 notable dam failures occurred worldwide.

Causes of Dam Breaks

Dam failures are complex events, rarely attributable to a single cause, often resulting from a combination of factors exacerbated by extreme conditions. Historically, the majority of dam failures have involved earthen dams, primarily caused by some level of flood.

Here are the primary categories of failure mechanisms:

• Hydraulic Failures: These are related to the uncontrolled flow of water over or around the dam.
  • Overtopping: This is the most common cause of dam failures, especially for embankment dams. It occurs when the water level in the reservoir rises above the dam crest, leading to erosion of the dam's downstream face and eventual collapse. Overtopping is often due to inadequate spillway design, extreme flood events, or blockage of spillways by debris. Earth embankments are not designed to be overtopped and are particularly susceptible to erosion. Once overtopping erosion begins, it is "almost impossible to stop".
  • Erosion of Downstream Slope/Toe: High-velocity discharges from spillways or outlet works can erode the foundation or toe of the dam, leading to instability.
• Seepage and Piping Failures (Internal Erosion): This is a progressive failure mechanism where water seeps through the dam body or its foundation, gradually carrying soil particles away and forming channels or "pipes". This weakens the structure and can eventually cause a breach. Signs of piping include increased seepage, discharge of muddy or discolored water, sinkholes on or near the embankment, and possibly a whirlpool at the reservoir surface. A "fully developed piping is virtually impossible to control and will likely cause failure". Seepage can also weaken a dam by saturating the embankment or increasing internal pressure.
• Structural Failures: These involve the breakdown of the physical integrity of the dam materials or its foundation.
  • Poor Design or Construction: Inadequate design, construction materials, or techniques can compromise the integrity of the dam. For example, the Gleno Dam (1923) failed due to "poor construction and design, inferior materials".
  • Aging Infrastructure: As dams age, their structural components can degrade, increasing the risk of failure. A UN report suggests that over 1,000 large dams in India will be roughly 50 years old by 2025, posing a growing threat.
  • Inadequate Maintenance: Neglect in maintenance can lead to a decline in structural integrity, making dams vulnerable. The Situ Gintung Dam (2009) failed due to "poor maintenance and heavy monsoon rain".
  • Foundation Defects/Problems: Weak or unstable geological conditions beneath the dam, such as settlement or slope instability, can compromise the dam’s stability and lead to failure.
  • Cracking: Movements like the natural settling of a dam can cause cracking, leading to failure.
  • Slope Instability: Instability of the upstream or downstream slopes of embankment dams can cause large sections to slide.
  • Earthquakes (Seismic Activity): Strong ground shaking can induce liquefaction, cause cracking in concrete structures, or trigger landslides, leading to failure.
• Operational Failures: These are human errors or system malfunctions in dam management.
  • Inadequate Gate Operations: Incorrect manipulation of spillway gates during flood events (e.g., not opening gates in time or opening too quickly) or gate malfunction can lead to overtopping or uncontrolled releases.
  • Insufficient Monitoring: Lack of proper instrumentation or failure to interpret monitoring data can lead to missed early warning signs.
  • Lack of Communication: Poor communication protocols between dam operators, emergency services, and downstream communities can hamper effective response.
• External Factors:
  • Landslides into Reservoir: A large landslide can create an impulsive wave that overtops the dam or directly causes a breach.
  • Sabotage or Terrorism: Deliberate acts aimed at causing dam failure.
  • Extreme Weather Beyond Design: Unprecedented rainfall magnitudes exceeding the dam's design capacity.

Types of Dams and Failure Modes

While all types of dams—earthen, concrete gravity, arch, buttress, and composite—are susceptible to failure, earthen embankment dams are most commonly involved in dam break incidents, especially during flood events. For example, 88% of dam breaks in China from 1989 to 2006 involved earth and earth-rock dams, with overtopping and piping being the primary causes.

Consequences of Dam Breaks

The impacts of a dam break are typically catastrophic and far-reaching:

• Massive Flooding: The sudden release of water creates a "wall of water" that inundates downstream areas. The initial outflow is typically very high, causing rapid and deep flooding.
• Loss of Life: This is the most tragic consequence, as the rapid flood wave gives little time for evacuation. Estimates for fatalities vary greatly, ranging from hundreds to tens of thousands. The Banqiao Reservoir Dam failure in China (1975) caused an estimated 171,000 deaths, displacing 11 million people.
• Destruction of Property and Infrastructure: Homes, businesses, agricultural land, and infrastructure (roads, bridges, power lines) are swept away or severely damaged. This leads to significant economic loss, including decreased crop productivity due to damaged farmland.
• Environmental Devastation: Impacts include significant erosion, alteration of river ecosystems, pollution from debris and submerged hazardous materials, and loss of wildlife habitats.
• Economic Disruption: Long-term displacement of populations, cessation of economic activities, destruction of agricultural livelihoods, and immense costs associated with rebuilding and recovery.
• Psychological Trauma: Survivors often experience severe long-term psychological impacts from the loss of loved ones, homes, and communities.

Factors Influencing Severity

The severity of a dam break incident is influenced by several factors:

• Volume of Water Stored: Larger reservoirs mean greater destructive potential.
• Rate of Breach Formation: A rapid, sudden breach generates a more destructive wave than gradual erosion.
• Downstream Topography: Steep, narrow valleys channelize the flood wave, increasing its velocity and depth, while wide, flat plains allow water to spread out, reducing intensity.
• Population Density Downstream: Higher populations in the inundation zone lead to greater potential for loss of life and property.
• Warning Time: The ability to provide timely warnings and facilitate evacuation significantly impacts casualty figures.

Prevention and Mitigation

Preventing dam breaks is a continuous and multi-faceted effort:

• Robust Design and Construction: Designing dams to withstand extreme hydrological and seismic events, using high-quality materials, and ensuring strict adherence to construction standards. Spillways must be large enough to handle flood flows without overtopping.
• Comprehensive Monitoring and Instrumentation: Installing instruments to monitor seepage, pressure, deformation, and seismic activity, coupled with regular analysis of this data to detect early warning signs.
• Regular Inspections and Assessments: Periodic safety inspections by qualified engineers to identify potential weaknesses, deterioration, or maintenance needs.
• Effective Maintenance and Repairs: Timely addressing of any issues identified during inspections to prevent their escalation into major problems.
• Emergency Action Plans (EAPs): Developing detailed plans that include inundation maps, clear communication protocols, evacuation routes, and designated emergency shelters for downstream communities. Regular drills and public awareness campaigns are crucial.
• Hydrological Forecasting and Flood Routing: Implementing advanced flood forecasting and routing systems to manage reservoir levels effectively during monsoon and extreme rainfall events, ensuring controlled releases that avoid overtopping.

Notable Case Studies

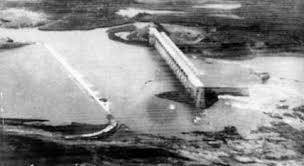

1. The 1979 Machchhu Dam Failure (Morbi Disaster):
   • Location and Date: The Machchu-2 dam on the Machhu River in Gujarat, India, failed on August 11, 1979.
   • Dam Structure: The dam was constructed in 1972 as a composite structure with a masonry spillway and earthen embankments on both sides. It was primarily meant for irrigation. The earthen embankment had a 6.1m top width with 1V:3H upstream and 1V:2H downstream slopes, and a clay core. Its spillway capacity was designed for 5,663 m³/s.
   • Causes: The failure was caused by excessive rainfall and massive flooding leading to the disintegration of the four-kilometer-long earthen walls of the Machchhu-2 dam. The actual observed flow reached 16,307 m³/s, approximately three times what the dam was designed for, resulting in its collapse. Despite efforts, three of the gates were not operational. The overtopping of the earthen embankments led to a catastrophic breach.
   • Consequences: A wall of water, 12 to 30 feet (3.7 to 9.1 m) high, inundated the low-lying areas of Morbi industrial town (located 5 km below the dam) within 20 minutes. Estimates of fatalities range widely from 1,800 to 25,000 people. The flood also killed hundreds of thousands of livestock and devastated dozens of villages and the city of Morbi. It damaged farmland, leading to a decrease in crop productivity, and caused great economic loss. The Morbi dam failure was listed as the worst dam burst in the Guinness Book of Records (before the 1975 Banqiao Dam failure's death toll was declassified in 2005).
   • Official Narrative vs. Reality: The official cause was initially termed an "Act of God". However, the book No One Had A Tongue To Speak by Tom Wooten and Utpal Sandesara debunks this claim, pointing to structural and communication failures that led to and exacerbated the disaster. An independent judicial Commission of Inquiry was set up but was allegedly "wound up" by the then Chief Minister before completing its work, as the investigation "honed in on flawed design practices in the irrigation department". There was no official warning of the dam failure issued due to communication issues. Survivors described scrambling for rooftops, hilltops, and temples, with many losing loved ones or taking refuge in places like the Vajepar Ram Mandir where over a hundred people died.
   • Aftermath and Reconstruction: The dam was rebuilt in the late 1980s, and its spillway capacity was increased by four times to about 21,000 m³/s to accommodate extreme flood events.
2. Banqiao Reservoir Dam Failure (China, 1975): This disaster is highlighted as causing more casualties than any other dam failure in history. It killed an estimated 171,000 people and displaced 11 million more. The failure was caused by extreme rainfall from Typhoon Nina, which exceeded the dam's design capability.

General Points on Dam Failures

• Aging Dams: Many dams built in the early 20th century are now beyond their projected lifespan, contributing to an inherent and growing risk of failure.
• Learning from the Past: Case studies of historical dam failures provide valuable lessons for dam safety engineers, operators, owners, regulators, and emergency managers to understand underlying causes and minimize future occurrences.
• Prediction Challenges: Predicting dam breach characteristics and peak outflow can be complex due to the varied and complex nature of dam structures (e.g., concrete-faced earth dams) and their breach mechanisms. Empirical formulas often have significant discrepancies when applied to specific, complex real-life cases, highlighting the need for caution and more refined models that consider reinforcements and physical properties.
• Societal Aspect: Dam collapses have profound social causes and consequences; there is "no such thing as a 'natural' disaster," as failures often emerge from a cascade of mistakes and professional/managerial problems. Covering up the causes of engineering disasters does a disservice to both the profession and the public.
