The effective design and management of canals and their water distribution systems are fundamental to efficient water management and sustainable agricultural practices in irrigation engineering. This involves a comprehensive understanding of various factors, including soil characteristics, canal alignment, and the hierarchical structure of the distribution network.
Soil Characteristics and Canal Construction The nature of the soil significantly influences the design and construction methods of canals. Civil and irrigation engineers must deeply understand soil characteristics to plan and construct resilient canal networks.
Alluvial Soils: These are loose, fertile soils commonly found near riverbeds and floodplains, primarily composed of sand, silt, and clay. Alluvial soils are highly permeable and susceptible to erosion and seepage. Consequently, canals built in these soils frequently necessitate lining or protective treatments to minimize water loss and maintain structural stability. Their gentle topography means that unlined and earthen canals are often feasible, though local lining might still be required.
Non-Alluvial Soils: This category includes hard, consolidated soils such as laterite, black cotton soil, rocky, or gravelly terrains. Unlike alluvial soils, non-alluvial soils are less prone to seepage and erosion, but they present considerable challenges in excavation and alignment. While unlined canals are possible where the soil is stable, rocky areas may require blasting or the use of reinforced lining to ensure durable water conveyance.
The selection of the appropriate canal type is contingent upon soil stability, permeability, cost considerations, and anticipated water losses. For alluvial soils, the focus during construction is on seepage control and bank stabilization, whereas for non-alluvial soils, the emphasis shifts to overcoming excavation difficulties and ensuring structural integrity.
Canal Types According to Alignment A canal's alignment relative to the local topography profoundly impacts its construction cost, water conveyance efficiency, and operational stability.
Watershed (Ridge) Canal: This type of canal is aligned along the highest points (watersheds or ridges) between two drainage basins. A key advantage is that they receive minimal drainage inflow, reducing the risk of waterlogging and breaches caused by floods. Being at higher elevations, these canals facilitate gravity-based water distribution over extensive areas.
Contour Canal: Contour canals are constructed along a contour line, maintaining a consistent elevation over long distances by following the natural undulations of the land. This alignment typically skirts side slopes and valleys, necessitating balancing works such as aqueducts and siphons to cross troughs and ridges. They are optimal for irregular terrain where a constant elevation is required.
Side Slope Canal: These canals are aligned along the side slopes of hills or valleys, generally situated below the watershed but above valley floors. They are suitable for irrigating foothill regions, but their path through sloping ground may require protective works against landslides and slippage, particularly in unstable areas.
Proper alignment, whether watershed, contour, or side slope, is crucial for determining a canal's efficiency and its resilience to natural hazards.

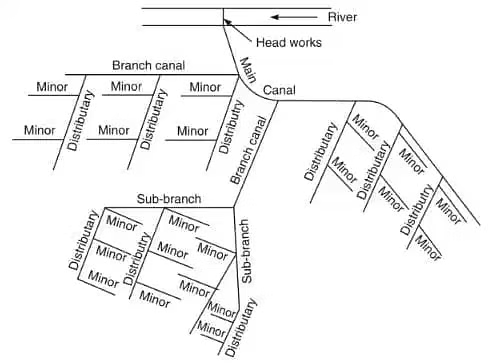

Hierarchical Canal Distribution System An efficient delivery of water from the source to agricultural fields relies on a well-structured and sequential canal network. This system ensures that water reaches every field with minimal loss, promoting both water conservation and agricultural productivity. The dimensions of the canal irrigation system progressively decrease from the main canal to the watercourse.
Main Canal: This is the principal conduit that transports water directly from the river, reservoir, or dam headworks to the irrigation command area. Main canals are designed for maximum capacity and minimal losses, with minimal water offtakes except at designated branch points. They typically carry a discharge equal to or greater than 10 cumecs and are generally not used for direct irrigation.
Branch Canal: Branch canals diverge from the main canal, often running parallel to it for significant distances. They are designed to convey water to major subdivisions of the command area. While handling large discharge volumes, their capacity is less than that of the main canal. They also function as feeder channels for larger and smaller tributaries. The discharge in branch canals usually ranges between 5 to 10 cumecs.
Major Distributary: These canals branch off from the branch canal, serving major portions of the irrigation area. Their primary role is to reduce water flow to manageable levels for further distribution. Major distributaries can sometimes draw water directly from the main canal and are also referred to as irrigation canals because water is piped from them to the fields.
Minor Distributary: Minor distributaries feed water from major distributaries directly towards smaller irrigation blocks or subzones. They are responsible for supplying water to individual watercourses. Their lining, whether unlined or lined, depends on the local soil and water table conditions. The discharge in minor distributaries typically ranges from 0.25 to 3 cumecs.
Watercourse (Field Channel): This is the final channel in the distribution hierarchy, delivering water directly to agricultural fields. Watercourses have the smallest discharge (less than 0.25 cumecs) and shortest lengths within the network. They require frequent maintenance to prevent seepage and ensure equitable water distribution. Depending on the size of the irrigated land, watercourses can originate from either major or minor distributaries.
Conclusion The planning and construction of canals demand a holistic understanding of both soil characteristics and topographical alignment. An intelligently designed, hierarchical distribution system, ranging from the main canal down to the watercourse, ensures that water effectively reaches every field with minimal loss, thereby promoting water conservation and enhancing agricultural productivity. Civil and irrigation engineers are encouraged to integrate these factors with site-specific assessments and modern hydrological modeling to develop safe, efficient, and sustainable canal networks for the future.
