Role of Digital Elevation Models (DEM) in Hydrology and Water Resources Engineering

Introduction

Water is one of the most vital yet complex elements to manage in civil and environmental engineering. Accurate understanding of how water moves across the landscape is fundamental to disciplines such as watershed management, flood forecasting, and drainage system design. In this realm, Digital Elevation Models (DEMs) have emerged as transformative tools, offering detailed, quantifiable insights into terrain and hydrological behavior.

This article explores how DEMs are applied specifically in watershed delineation, flood modeling, and drainage analysis, showcasing their indispensable role in modern hydrology and water resources engineering.

1. Watershed Delineation Using DEMs

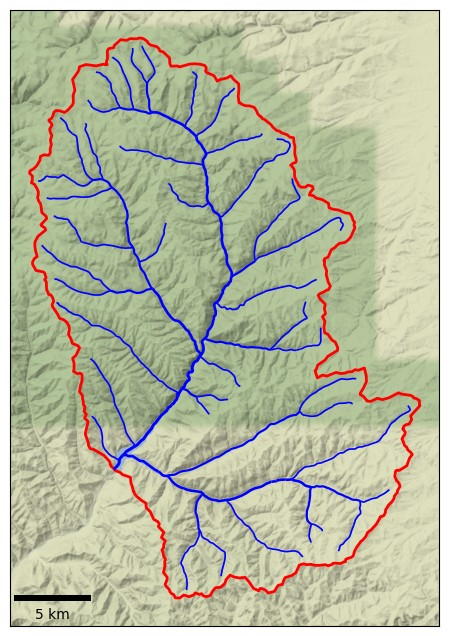

Image source: Wikipidia

Understanding Watershed Delineation

A watershed (also called a drainage basin) is an area of land where all precipitation collects and drains into a common outlet — such as a river, bay, or other body of water. Defining watershed boundaries accurately is crucial for water resource management, environmental assessment, and infrastructure planning.

How DEMs Enable Watershed Delineation

Traditionally, watershed boundaries were manually traced using topographic maps — a tedious, error-prone process. With DEMs, watershed delineation has become automated and highly accurate. The process involves:

Flow Direction Calculation: Using the elevation data, flow direction at each DEM cell is determined (e.g., D8 method — flow into one of eight surrounding cells).
Flow Accumulation Mapping: Cells accumulating water from upstream cells are mapped, helping to identify stream networks.
Outlet Selection: Hydrologists can define an outlet point, and GIS algorithms trace the watershed upstream based on flow paths.
Watershed Boundary Extraction: The result is a precise, reproducible delineation of the watershed area.

Importance of Accurate Watershed Delineation

Essential for catchment management plans.
Critical input for runoff estimation and hydrological modeling.
Supports pollution control measures by identifying contaminant pathways.

Tools like ArcGIS, QGIS, and specialized hydrology software such as HEC-HMS rely heavily on DEM-derived watershed maps for simulations and decision-making.

2. Flood Modeling and Risk Assessment

Understanding Flood Modeling

Flood modeling predicts how, where, and when floodwaters will spread across the landscape during extreme weather events. It informs planning, emergency response, and infrastructure design to mitigate flood risks.

DEM’s Role in Flood Simulation

Detailed terrain information is fundamental for realistic flood models. DEMs contribute by:

Establishing Surface Topography: The elevation values dictate how water flows and pools across the land.
Defining Floodplain Boundaries: Low-lying areas adjacent to rivers that are prone to flooding are identified.
Simulating Water Levels: By combining river discharge data with DEMs, models can simulate inundation extents.
Depth Mapping: Calculating the depth of floodwaters at various locations.
Time Series Analysis: DEMs enable dynamic flood progression simulations over time, useful for evacuation planning.

Software like HEC-RAS 2D, MIKE FLOOD, and TUFLOW use DEMs to construct computational grids that model flood behavior under different scenarios.

Impact of DEM Resolution

Flood modeling accuracy highly depends on the resolution of the DEM:

Low-resolution DEMs (>30m) may oversimplify terrain and miss critical microtopographic features (e.g., levees, embankments).
High-resolution LiDAR DEMs (≤1m) provide detailed surface features, leading to better flood extents and hazard maps.

Applications of Flood Modeling with DEMs

Urban flood risk zoning and land-use planning.
Designing flood mitigation structures like levees, retention basins, and diversion channels.
Insurance sector risk analysis for property valuations and policy issuance.
Climate change studies forecasting future flood scenarios.

3. Drainage Analysis for Stormwater Infrastructure

Understanding Drainage Analysis

Effective drainage systems are essential to manage surface runoff, prevent waterlogging, protect infrastructure, and control soil erosion, particularly in urban environments.

DEM-Driven Drainage Analysis

DEMs provide the necessary topographic data to:

Identify natural flow paths across the terrain.
Locate depressions or "sinks" where water might accumulate.
Design optimal locations for stormwater drains, culverts, and retention basins.
Estimate runoff volumes and flow velocities during rainfall events.

Steps in Drainage Network Design Using DEMs

Flow Direction and Accumulation: Determine how rainfall runoff will travel.
Channel Network Extraction: Simulate stream networks to guide urban drainage layouts.
Slope Analysis: Understand flow velocities and potential for erosion.
Catch Basin Placement: Identify areas requiring catch basins or inlets for surface water collection.
Model Storm Events: Using rainfall-runoff models integrated with DEMs to simulate various rainfall intensities.

GIS-based hydrological modeling tools, such as SWMM (Storm Water Management Model) and InfoWorks ICM, use DEMs to design, analyze, and optimize urban stormwater infrastructure systems.

Importance for Smart Cities and Sustainable Urban Development

Promotes low-impact development (LID) by aligning with natural drainage.
Helps mitigate urban flooding and heat island effects.
Supports green infrastructure planning (e.g., rain gardens, permeable pavements).

Challenges and Considerations in DEM-Based Hydrological Applications

While DEMs greatly enhance hydrological analysis, several challenges must be addressed:

DEM Artifacts: Spurious pits or peaks can distort flow modeling; preprocessing like pit removal is often required.
Vegetation and Man-made Structures: If not filtered (e.g., in DSMs), can misrepresent true ground elevation, affecting hydrology models.
Resolution vs. Computation Trade-off: High-resolution DEMs yield better accuracy but require greater computational resources.
Data Currency: Outdated DEMs may not reflect current conditions, especially in areas with recent urbanization or natural disasters.

Correct preprocessing, careful selection of DEM sources, and appropriate scaling are critical to obtaining reliable hydrological insights.

Conclusion

Digital Elevation Models have revolutionized the field of hydrology and water resources engineering. Whether it's the delineation of watersheds, the modeling of catastrophic floods, or the design of efficient drainage systems, DEMs provide the bedrock of spatial understanding necessary for effective water management.

As climate change and urbanization increase the complexity of water-related challenges, the role of high-resolution, accurate, and dynamic DEMs will only grow. Future advancements, such as integrating real-time remote sensing data with DEM-based models, promise even more powerful tools for sustainable and resilient water management systems.

In short, in the age of data-driven decision-making, DEMs are not just maps — they are indispensable instruments for securing our water future.
