The Vickers hardness test is a widely used microindentation method that measures the hardness of materials—from soft metals to hard ceramics—with precision and reliability. Developed in the early 20th century by Robert L. Smith and George E. Sandland, the test remains popular because of its versatility and ability to produce consistent results across a wide range of materials.
1. Principle of the Vickers Hardness Test

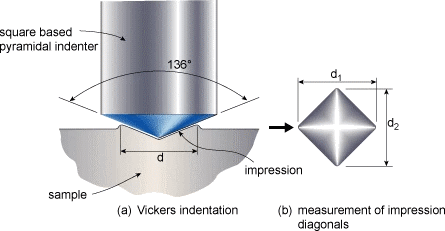

The Vickers hardness test is based on the concept of indentation hardness. It employs a diamond indenter shaped as a square-based pyramid with an angle of 136° between opposite faces. During the test, a predetermined load is applied to the indenter, which then presses into the surface of the material. The size of the resulting indentation, specifically the length of the two diagonals, is measured with high precision.
The Vickers hardness number (HV) is calculated using the following formula:
HV = (1.8544 × F) / d²
where:
- F is the applied load in kilograms-force (kgf) or newtons (N) (with appropriate conversion), and
- d is the average length of the two diagonals of the indentation (in millimeters).
This equation reflects the relationship between the applied force and the contact area of the indentation. A smaller indentation (i.e., a smaller value of d) indicates a harder material, which results in a higher Vickers hardness value.
2. Equipment and Test Setup
2.1 Indenter Design
The diamond pyramid indenter used in the Vickers test is prized for its durability and precision. Its geometry—with a 136° angle between opposite faces—ensures that the indentation remains consistent regardless of the load applied, allowing for accurate comparison across different materials.
2.2 Testing Machine
A typical Vickers hardness testing machine comprises a load application system and a high-resolution microscope for measuring the indentation diagonals. Modern machines often feature automated systems for both load control and measurement, which increases repeatability and reduces human error.
2.3 Specimen Preparation
Specimen preparation is critical to obtaining reliable results. Surfaces must be polished to a high degree to remove any irregularities that could affect the indentation. A flat, smooth surface ensures that the indenter contacts the material uniformly, which is especially important when testing materials with a fine microstructure.
3. Test Procedure
3.1 Loading the Specimen
The test begins by placing the specimen securely on the testing platform. A specific load—ranging from a few grams to several kilograms—is then applied via the diamond indenter. The chosen load should be appropriate for the material being tested; softer materials require lower loads, whereas harder materials can sustain higher loads without excessive deformation.
3.2 Dwell Time
After the load is applied, it is maintained for a fixed dwell time (usually around 10 to 15 seconds). This dwell period allows the material to deform fully under the load and ensures that the indentation reaches a stable state before unloading.
3.3 Unloading and Measurement
Once the dwell time is complete, the load is removed, leaving behind a permanent indentation. The diagonals of this indentation are measured using a microscope. The average of the two diagonal lengths is then used in the hardness calculation formula.
Tip for Accuracy: To minimize errors, multiple indentations are made on the specimen, and the resulting hardness values are averaged.
4. Calculation and Interpretation
Using the formula mentioned earlier, the Vickers hardness number is computed. This number provides a quantitative measure of a material’s resistance to plastic deformation. Because the test can be used over a wide range of loads, it is suitable for both macrohardness and microhardness measurements.
4.1 Conversion of Units
It is essential to maintain consistency in the units used during calculation. When force is given in newtons and the diagonal in millimeters, the appropriate conversion factor must be applied to yield the hardness value in MPa or another consistent unit system.
4.2 Reporting Results
The hardness is usually reported as HV followed by the load used (e.g., HV 500 for a 500-gram load). This notation ensures that the conditions under which the hardness was measured are clear, which is important for comparing test results.
5. Advantages and Limitations
5.1 Advantages
- Versatility: The test is applicable to a wide variety of materials, including metals, ceramics, and composites.
- Consistency: The use of a single diamond indenter shape across all tests ensures that results are directly comparable.
- Microhardness Measurement: It is especially useful for testing small areas or thin coatings, where other methods may fail to produce reliable results.
- Precision: Automated systems in modern Vickers testers improve accuracy in both load application and measurement.
5.2 Limitations
- Surface Preparation: Poor surface finish can lead to inaccurate measurements.
- Time Consumption: The process, including polishing and measurement, can be time-consuming compared to some other hardness tests.
- Anisotropic Materials: For materials with directional properties, the measured hardness may vary with the orientation of the indenter.
6. Comparison with Other Hardness Tests
To illustrate how the Vickers test compares with other common hardness tests, consider the following table:
| Test Method | Indenter Material/Shape | Range of Loads | Suitable Materials | Key Advantage |
|---|---|---|---|---|
| Vickers | Diamond pyramid (136° angle) | Wide range | Metals, ceramics, composites | Versatility and precision across scales |
| Brinell | Hardened steel or tungsten carbide ball | Moderate loads | Metals (especially softer ones) | Simple and reproducible for bulk materials |
| Rockwell | Diamond cone or steel ball | Quick test | Metals and polymers | Fast and convenient, minimal specimen prep |
| Knoop | Elongated diamond indenter | Microhardness range | Brittle materials and thin coatings | Suitable for very small areas and coatings |
The Vickers test’s adaptability across different load ranges makes it particularly useful when testing materials with varying hardness levels. Its precision is also a distinct advantage when comparing microstructural properties.
7. Applications in Industry and Research
The Vickers hardness test is extensively used in research and industry:
- Quality Control: Manufacturers use the test to verify the hardness of components and ensure that materials meet specified standards.
- Material Development: Researchers employ the test to evaluate new alloys, ceramics, and composites.
- Failure Analysis: Hardness testing can help determine wear resistance and the potential for failure in service.
- Coatings Evaluation: The microhardness capability is invaluable for assessing thin films and surface treatments on materials.
Conclusion
The Vickers hardness test is a cornerstone technique in material science and civil engineering, providing a reliable measure of a material’s resistance to deformation. Its broad applicability, precision, and adaptability make it an indispensable tool for quality control, material research, and failure analysis. By understanding its principles, procedure, and the advantages and limitations compared to other methods, engineers and researchers can select the best approach to characterize material properties effectively.
