Detailed Specification for Fly Ash
1. Introduction
Fly ash is a byproduct of coal combustion in thermal power plants. It is a fine, powdery material composed mainly of silica, alumina, and iron. Fly ash is widely used in construction due to its pozzolanic properties, which enhance the performance of concrete and other building materials.
2. Types of Fly Ash
Fly ash is classified into two main types based on its chemical composition and properties:
2.1 Class F Fly Ash
- Source: Produced from the burning of harder, older anthracite and bituminous coal.
- Chemical Composition: Contains less than 20% lime (CaO).
- Properties: High in silica (SiO₂) and alumina (Al₂O₃), making it highly pozzolanic. It requires a cementing agent like Portland cement to react and form cementitious compounds[1].
2.2 Class C Fly Ash
- Source: Produced from the burning of younger lignite or sub-bituminous coal.
- Chemical Composition: Contains more than 20% lime (CaO).
- Properties: Self-cementing properties due to high calcium content. It can harden and gain strength without the addition of a cementing agent[1].
3. Chemical Composition

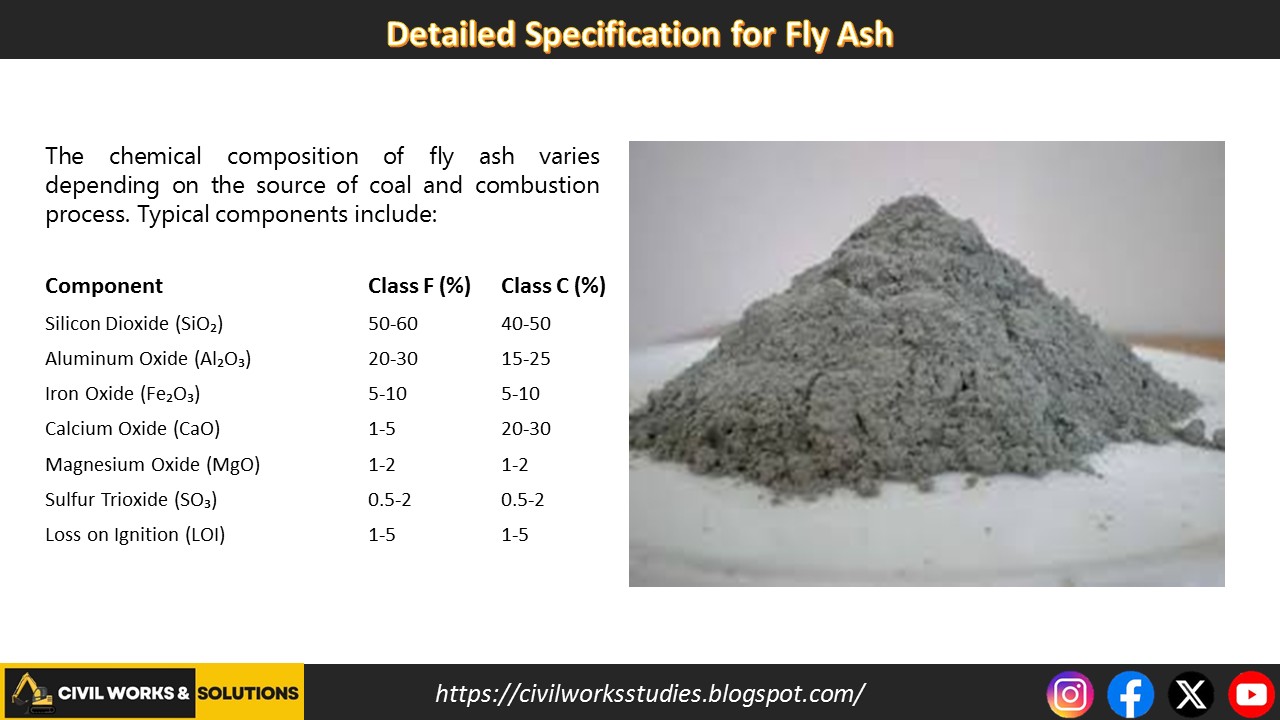

The chemical composition of fly ash varies depending on the source of coal and combustion process. Typical components include:
| Component | Class F (%) | Class C (%) |
|---|---|---|
| Silicon Dioxide (SiO₂) | 50-60 | 40-50 |
| Aluminum Oxide (Al₂O₃) | 20-30 | 15-25 |
| Iron Oxide (Fe₂O₃) | 5-10 | 5-10 |
| Calcium Oxide (CaO) | 1-5 | 20-30 |
| Magnesium Oxide (MgO) | 1-2 | 1-2 |
| Sulfur Trioxide (SO₃) | 0.5-2 | 0.5-2 |
| Loss on Ignition (LOI) | 1-5 | 1-5 |
4. Physical Properties
Fly ash has several physical properties that make it suitable for use in construction:
- Fineness: Fly ash particles are typically spherical and fine, with a size range of 1-100 microns. The fineness of fly ash affects its reactivity and workability in concrete[2].
- Specific Gravity: The specific gravity of fly ash ranges from 2.1 to 2.6, depending on its composition[2].
- Bulk Density: The bulk density of fly ash varies from 540 to 860 kg/m³[2].
5. Applications in Construction
Fly ash is used in various construction applications due to its beneficial properties:
5.1 Concrete Production
- Pozzolanic Reaction: Fly ash reacts with calcium hydroxide in the presence of water to form calcium silicate hydrate (C-S-H), which improves the strength and durability of concrete[3].
- Workability: The spherical shape of fly ash particles improves the workability of concrete, reducing the need for water and superplasticizers[3].
- Durability: Fly ash enhances the durability of concrete by reducing permeability, mitigating alkali-silica reaction (ASR), and increasing resistance to sulfate attack[3].
5.2 Cement Replacement
- Partial Replacement: Fly ash can replace 15-30% of Portland cement in concrete, reducing the carbon footprint and cost of construction.
- Environmental Benefits: Using fly ash in cement production reduces the demand for limestone and decreases CO₂ emissions associated with cement manufacturing.
5.3 Soil Stabilization
- Improvement of Soil Properties: Fly ash is used to stabilize and improve the properties of soil in road construction and embankments.
- Reduction of Plasticity: Fly ash reduces the plasticity index of soil, enhancing its load-bearing capacity and reducing shrink-swell behavior.
6. Quality Control and Standards
Fly ash used in construction must meet specific quality standards to ensure its performance and safety:
6.1 ASTM C618
- Standard Specification: ASTM C618 specifies the requirements for coal fly ash and raw or calcined natural pozzolan for use in concrete.
- Classification: Fly ash is classified into Class F and Class C based on its chemical composition and properties.
6.2 IS 3812
- Indian Standard: IS 3812 specifies the requirements for pulverized fuel ash for use as pozzolana in cement, cement mortar, and concrete.
- Quality Parameters: The standard outlines the physical and chemical properties, including fineness, specific gravity, and chemical composition.
7. Handling and Storage
Proper handling and storage of fly ash are essential to maintain its quality and prevent environmental contamination:
- Storage: Fly ash should be stored in dry, weatherproof silos or bins to prevent moisture absorption and contamination.
- Handling: Use appropriate equipment and procedures to minimize dust generation and exposure during handling and transportation.
