Introduction
Plane table surveying is a versatile and efficient method of field mapping, widely used for detailed and accurate topographical surveys. Unlike other techniques, it allows for real-time plotting, making it indispensable for site engineers, surveyors, and researchers. This article serves as a comprehensive guide, covering every aspect of plane table surveying, from its practical applications to actionable tips for optimizing its use.
1. The Basics of Plane Table Surveying
What is Plane Table Surveying?
Plane table surveying is a graphical method where field observations are directly plotted onto a drawing sheet mounted on a plane table. It eliminates the need for separate field notes, reducing the chances of transcription errors. The core principles of this method is "parallelism" which provides simplicity, direct observation, and real-time plotting, ensuring minimal discrepancies. Objectives focus on achieving accurate field mapping, reducing errors, and improving efficiency in survey operations.

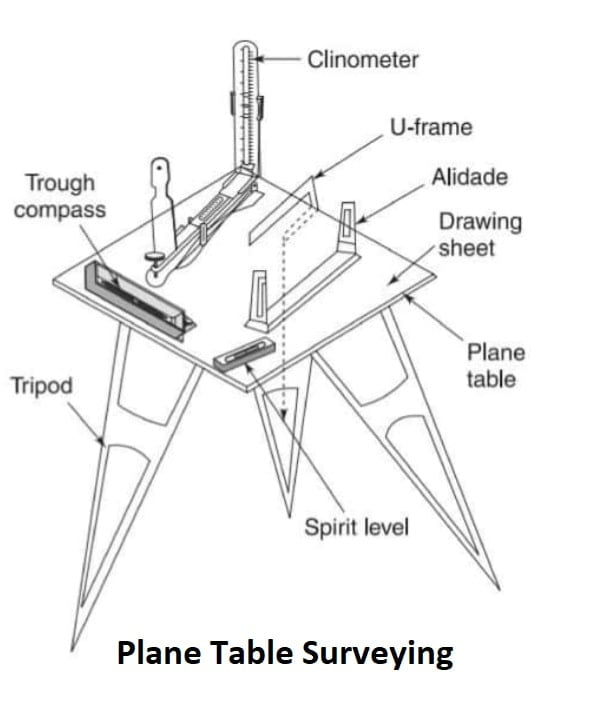

Key Equipment Required:
Plane Table: A flat, sturdy board mounted on a tripod.
Alidade: A sighting device for taking angular measurements.
Spirit Level: Ensures the table is perfectly horizontal.
Drawing Sheet and Clips: Used to plot observations.
Compass: For orienting the table.
Plumbing Fork: Helps in transferring points from the ground to the drawing sheet.
Applications of Plane Table Surveying:
Topographical Mapping: Ideal for areas requiring precise contour details.
Construction Projects: Useful for site layout planning.
Land Parcel Surveys: Commonly used in cadastral mapping.
2. Advantages and Challenges of Plane Table Surveying
Benefits:
Real-Time Plotting: Observations are immediately represented on paper, allowing for instant verification.
Cost-Effective: Requires minimal equipment compared to advanced surveying tools.
User-Friendly: Easy to set up and operate, even in remote areas.
Flexibility: Suitable for small to medium-sized survey areas.
Challenges:
Weather Dependence: Rain or wind can disrupt the plotting process.
Limited Accuracy for Large Areas: Plane table surveying is not ideal for extensive regions requiring high precision.
Setup Sensitivity: Minor errors in leveling or orientation can impact results.
3. Step-by-Step Guide to Plane Table Surveying
1. Setting Up the Plane Table
Position the tripod at the survey station.
Secure the plane table to the tripod.
Level the table using the spirit level.
2. Orientation of the Table
Align the table with true north using the compass.
Mark a reference point for consistency across stations.
3. Plotting Points
Use the alidade to sight a target point.
Draw a ray along the alidade’s edge.
Measure the distance to the target point and scale it onto the drawing sheet.
4. Shifting to a New Station
Repeat the orientation process at the new station.
Correlate the new setup with previously plotted points to maintain continuity.
4. Comparison of Plane Table Surveying with Other Methods
| Feature | Plane Table Surveying | Theodolite Surveying | Total Station Surveying |
|---|---|---|---|
| Accuracy | Moderate | High | Very High |
| Cost | Low | Moderate | High |
| Real-Time Plotting | Yes | No | Yes |
| Ease of Use | Simple | Moderate | Complex |
| Ideal Application | Small to medium areas | Angular measurements | Large-scale surveys |
5. Best Practices for Effective Plane Table Surveying
Double-Check Leveling: Regularly verify the table’s horizontal alignment to avoid skewed results.
Protect the Drawing Sheet: Use a transparent cover to shield it from environmental damage.
Validate Orientation: Cross-check the table’s orientation at each station for consistency.
Regular Calibration: Inspect and maintain equipment, especially the alidade and spirit level, to ensure precision.
Document Field Conditions: Note weather, visibility, and ground conditions to explain potential anomalies.
6. Balancing Efficiency and Accuracy in Surveys
Content Organization and Navigation
A well-organized survey report is critical for stakeholders. Structure the final output with clear sections, such as:
Objective and Scope
Methodology
Observations
Plots and Drawings
Conclusions
Avoiding Common Pitfalls
Inconsistent Scaling: Use a uniform scale for all points to maintain accuracy.
Poor Station Visibility: Choose survey stations with clear sightlines to all target points.
Neglecting Environmental Factors: Account for ground slope, wind, and temperature during fieldwork.
Balancing Monetization with User Experience
For those publishing survey-related content online, avoid excessive ads that disrupt readability. Instead, prioritize:
Intuitive navigation.
Fast-loading pages.
Clear, actionable insights.
Conclusion
Plane table surveying remains a practical and reliable technique for various mapping tasks. By mastering the fundamentals, adopting best practices, and leveraging its strengths, surveyors can achieve accurate and efficient results. Whether you are planning a topographical map or laying out a construction site, this guide equips you with the knowledge to excel in plane table surveying.
